Introduction Conveyor systems play an important role in modern manufacturing, warehousing, packaging, and material handling operations. They are designed to move products, components, raw materials, and bulk goods from one location to another along a planned route. Depending on the application, a conveyor system may operate manually, through gravity, or with the help of motors and automated controls. Industries use conveyor systems to maintain a consistent flow of materials between different stages of production. For example, a manufacturing facility may use conveyors to transport components to assembly stations, while a distribution center may use them to move packages toward sorting and dispatch areas. Food processing plants, mining operations, pharmaceutical facilities, and agricultural businesses also use different conveyor configurations to meet their material-handling needs. However, not every conveyor system is suitable for every operation. The correct design depends on factors such as material characteristics, load capacity, transportation distance, required speed, available space, and working conditions. This guide explains the major types of conveyor systems, their essential requirements, common applications, advantages, limitations, and important considerations for selecting and maintaining them.
What Is a Conveyor System?
A conveyor system is a mechanical material-handling arrangement that transports goods or materials between two or more locations. It typically consists of a carrying surface or transport mechanism, a supporting frame, drive components where required, and safety or control equipment.
Some conveyor systems move individual items, such as cartons, containers, and machine parts. Others are designed to transport bulk materials, including grains, sand, coal, cement, and industrial powders.
Conveyors may operate continuously or move products in controlled stages. Their configuration can be horizontal, inclined, vertical, curved, or overhead, depending on the layout and process requirements.
A conveyor system can also connect different types of industrial equipment. For example, it may transfer materials between a processing machine, an inspection station, a packaging unit, and a storage area.
Main Types of Conveyor Systems
Different conveyor types use different mechanisms to transport materials. Understanding their operating principles helps explain where each system is most appropriate.
1. Belt Conveyor Systems

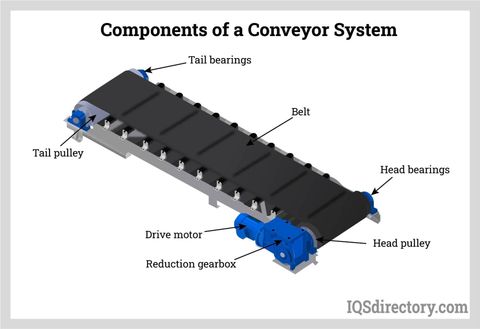

Belt conveyors use a continuous belt that moves around pulleys and is supported by rollers or a flat bed. The belt carries materials along a defined route, making this system suitable for many general material-handling tasks.
Belt conveyors are available in different designs, including flat-belt, inclined-belt, cleated-belt, and modular-plastic-belt configurations.
Common applications:
Manufacturing and assembly lines
Packaging and distribution facilities
Food processing operations
Mining and bulk material transportation
Warehouse material movement
The main advantages of belt conveyors include versatility, continuous movement, and suitability for transporting many types of products. Their limitations may include belt wear, tracking problems, and the need for regular inspection of pulleys and drive components.
2. Roller Conveyor Systems
Roller conveyor systems consist of a series of rollers mounted within a supporting frame. Products move across the rollers through gravity or powered rotation.
Gravity roller conveyors do not require a motor to move items along a suitable incline or when workers push products manually. Powered roller conveyors use motors or drive mechanisms to control product movement.
These systems are commonly used for rigid products with relatively flat bottoms, such as boxes, cartons, totes, crates, and pallets.
Common applications:
Warehousing and distribution
Package sorting
Assembly and inspection stations
Loading and unloading areas
Pallet transportation
Roller conveyors can be useful where products need to accumulate or move between workstations. However, they may not be appropriate for soft packages, irregularly shaped materials, or items that cannot maintain stable contact with the rollers.
3. Chain Conveyor Systems
Chain conveyors use one or more chains to pull, carry, or support products along a fixed route. Some designs use attachments, slats, or special carriers to accommodate particular loads.
These systems are often selected for heavy products or applications where a conventional belt may not provide the required durability or support.
Common applications:
Automotive manufacturing
Heavy machinery production
Pallet handling
Metal processing
Industrial assembly lines
Chain conveyors can handle substantial loads when correctly designed. Their performance depends on chain strength, drive capacity, lubrication, alignment, and maintenance. Chain wear and mechanical noise may become concerns if components are not inspected regularly.
4. Screw Conveyor Systems
A screw conveyor uses a rotating helical blade, commonly called an auger, inside a trough or tube. As the screw rotates, it moves bulk materials along the conveyor.
These systems are particularly useful for loose materials that need controlled movement within an enclosed or partially enclosed arrangement.
Common applications:
Grain and agricultural processing
Cement production
Chemical processing
Powder handling
Waste and sludge management
Screw conveyors can support controlled material feeding and can help contain dusty substances. However, the screw may cause abrasion or damage to some materials, and the system must be designed to prevent blockages and excessive wear.
5. Pneumatic Conveyor Systems
Pneumatic conveyors transport materials through pipelines using moving air or another suitable gas. Depending on the design, materials may be carried by positive pressure or drawn through the system by vacuum.
These systems are often used for dry, relatively fine materials that need to move through enclosed routes.
Common applications:
Flour and grain processing
Cement and mineral handling
Plastic pellet transportation
Pharmaceutical powder processing
Chemical manufacturing
Pneumatic conveying can reduce the need for open material-transfer points and can accommodate complex pipeline routes. However, it requires suitable air-moving equipment and control systems. Energy consumption, pipe wear, dust control, and material degradation must be considered during system design.
6. Overhead Conveyor Systems
Overhead conveyors carry products using tracks and suspended carriers positioned above the working area. They can move products through manufacturing or finishing processes while leaving more floor space available for people, vehicles, and equipment.
Common applications:
Automotive assembly
Painting and finishing lines
Garment production
Industrial component handling
Parts washing and surface treatment
Overhead systems are particularly useful when products need to pass through several processing stages. Their design must account for ceiling height, structural support, suspended loads, maintenance access, and worker safety.
7. Vibratory Conveyor Systems
Vibratory conveyors use controlled vibration to move materials along a trough or supporting surface. The vibration may be produced by mechanical, electromagnetic, or other drive arrangements.
These conveyors are often used for materials that need gentle movement, controlled feeding, or distribution across a processing line.
Common applications:
Food and agricultural processing
Mining and mineral handling
Screening and sorting
Ingredient feeding
Industrial parts handling
Vibratory conveyors can support consistent material flow and may combine transportation with feeding or screening functions. Their suitability depends on material characteristics, vibration settings, noise limits, and the surrounding equipment.
8. Bucket Elevator Systems
Bucket elevators use buckets attached to a belt or chain to move bulk materials vertically. The buckets collect material at a lower point and discharge it at a higher location.
They are especially useful where a facility needs to lift loose materials without using a long inclined conveyor route.
Common applications:
Grain storage facilities
Cement plants
Fertilizer production
Sugar processing
Mining and mineral handling
Bucket elevators make vertical transportation possible within a relatively compact footprint. They require appropriate bucket spacing, drive capacity, material feeding, discharge arrangements, and safety controls.
Essential Requirements of Conveyor Systems
Selecting a conveyor system involves more than identifying a suitable conveyor type. Its design must match the operational requirements of the facility.
1. Material Characteristics
The first consideration is the material being transported. Important characteristics include weight, size, shape, temperature, moisture content, surface condition, and fragility.
Loose powders may require screw or pneumatic conveying, while cartons and packaged products may be transported using belt or roller conveyors. Heavy components may require chain-based systems or specially designed carriers.
Material characteristics also influence the choice of belt material, contact surfaces, enclosure, and cleaning method.
2. Load Capacity
Load capacity refers to the amount of material a conveyor can safely transport under its intended operating conditions.
Designers must consider the weight of individual products, the total load present on the conveyor, product spacing, and the expected operating cycle. Bulk material systems may also need capacity calculations based on material density and required throughput.
An undersized system may experience excessive wear, motor overload, or mechanical failure. A system designed far beyond actual requirements may increase initial and operating costs unnecessarily.
3. Speed and Throughput
Conveyor speed determines how quickly products move along the transport route. Throughput describes the amount of material moved over a specified period.
The conveyor must match the pace of connected machinery, workstations, packaging equipment, and storage operations. Excessive speed may cause product damage, unstable loads, or sorting errors, while insufficient speed may create production bottlenecks.
Adjustable speed controls can help accommodate changing operating conditions.
4. Space and Facility Layout
Available floor space, ceiling height, existing machinery, walkways, and maintenance access all influence conveyor design.
A straight belt conveyor may work well in an open production area, while a curved or modular system may be more suitable for a restricted layout. Overhead conveyors can free up floor space, but they require suitable structural support and clearance.
The layout should also account for emergency exits, pedestrian routes, equipment access, and future changes to the production process.
5. Operating Environment
Environmental conditions can affect conveyor performance and component life. Dust, moisture, heat, cold, corrosive substances, and exposure to cleaning chemicals may require specialized materials or protective measures.
Food and pharmaceutical operations may need hygienic designs with cleanable surfaces and suitable materials. Mining and metal-processing environments may require abrasion-resistant components and protection against dust.
Electrical equipment and control systems must also be suitable for the conditions in which they operate.
6. Power and Control Requirements
Powered conveyors require an appropriate drive system, motors, electrical supply, and controls. The required power depends on factors such as conveyor length, load, incline, friction, speed, and starting conditions.
Sensors, variable-frequency drives, programmable logic controllers, and automated control systems may be used to regulate movement, detect products, manage accumulation, and coordinate connected machinery.
The control arrangement should match the complexity of the operation and provide appropriate stopping and fault-handling functions.
7. Safety and Compliance
Conveyor systems contain moving belts, rollers, chains, gears, and other components that can create hazards. Proper safety design is essential for protecting workers and maintaining reliable operation.
Important considerations include guarding of dangerous moving parts, accessible emergency stops, safe maintenance procedures, warning signs, and training for operators.
Facilities should identify and follow applicable local regulations and relevant industry standards. Safety requirements depend on the conveyor design, workplace, and materials being handled.
8. Maintenance and Reliability
Maintenance requirements affect the long-term performance of a conveyor system. Regular inspection helps identify belt damage, loose fasteners, unusual vibration, bearing wear, lubrication problems, and alignment issues.
Facilities should consider component availability, ease of access, cleaning needs, expected service life, and the skills required for maintenance.
A planned maintenance schedule can help reduce unexpected downtime and improve equipment reliability.
Major Applications of Conveyor Systems
Conveyor systems are used across a wide range of industries because different products and materials need to move between workstations, machines, storage areas, and shipping points.
| Industry | Typical applications |
|---|---|
| Manufacturing | Moving components between production and assembly stations |
| Warehousing and logistics | Sorting packages, moving cartons, and supporting order fulfillment |
| Food processing | Transporting ingredients, packaged foods, and products between processing stages |
| Pharmaceuticals | Moving containers, packaging materials, and products through controlled production areas |
| Mining | Transporting ores, coal, aggregates, and other bulk materials |
| Agriculture | Handling grains, seeds, fertilizers, and harvested materials |
| Automotive | Moving vehicle components, parts, and assemblies |
| Packaging | Feeding products into filling, labeling, sealing, and packing operations |
| Chemicals | Transferring suitable powders and bulk materials between process stages |
| Waste management | Moving recyclable materials and waste through sorting and processing systems |
The exact conveyor design varies within each industry. For example, a food processing conveyor may prioritize hygiene and cleanability, while a mining conveyor may require high load capacity and resistance to abrasive materials.
Advantages and Limitations of Conveyor Systems
Conveyor systems can provide several operational benefits when selected and maintained correctly.
Advantages
Consistent material flow: Products can move between workstations at a planned pace.
Reduced manual handling: Conveyors can reduce repetitive carrying and lifting tasks.
Support for automation: They can connect machines, sensors, inspection stations, and packaging equipment.
Improved process organization: Defined transport routes help establish predictable workflows.
Flexible configurations: Different designs can accommodate straight, curved, inclined, or vertical movement.
Handling capacity: Appropriately designed systems can transport large volumes of material or heavy loads.
Limitations
Initial investment: Equipment, installation, controls, and facility modifications can require significant expenditure.
Maintenance needs: Belts, chains, bearings, rollers, and drives require inspection and servicing.
Layout constraints: Fixed conveyor routes may limit changes to a facility's arrangement.
System dependency: A failure at a critical point may interrupt connected production stages.
Product limitations: Not every conveyor can safely handle every shape, weight, or material.
Energy use: Powered systems consume energy, particularly when operated inefficiently or under unsuitable conditions.
These factors should be assessed alongside the expected operating benefits and the requirements of the specific facility.
Modern Trends in Conveyor Technology
Conveyor technology continues to develop as industries adopt automation and data-based maintenance practices.
Smart Sensors and Condition Monitoring
Sensors can monitor factors such as belt movement, temperature, vibration, motor load, and product position. The information can help operators identify unusual conditions before they lead to major equipment problems.
Automated Controls
Modern conveyor installations may use programmable controllers, barcode readers, optical sensors, and variable-speed drives to coordinate material movement. These technologies can support product tracking, sorting, and controlled accumulation.
Energy Efficiency
Efficient motors, suitable drive sizing, optimized operating speeds, and automatic start-stop controls can help reduce unnecessary energy consumption. The best approach depends on the operating pattern and conveyor design.
Modular Conveyor Designs
Modular systems allow selected sections to be rearranged, extended, or replaced as operational needs change. This can be useful for facilities that regularly adjust production layouts or introduce new product types.
Integration with Digital Systems
Conveyors can connect with warehouse management systems, manufacturing execution systems, and other industrial software. Such integration can improve visibility into material flow and help coordinate production and distribution activities.
Technology selection should be based on practical operating needs, compatibility, maintenance capability, and measurable benefits rather than automation alone.
How to Select a Suitable Conveyor System
A structured assessment helps facilities compare conveyor options and avoid unsuitable designs.
Identify the material or product to be transported, including its dimensions, weight, shape, and condition.
Define the required throughput, operating speed, and daily operating hours.
Map the transportation route and identify any inclines, curves, transfer points, or vertical movement.
Evaluate space availability, environmental conditions, and the equipment that must connect to the conveyor.
Determine safety, cleaning, control, and maintenance requirements.
Compare installation costs, energy consumption, spare parts, expected service life, and downtime risks.
Review future capacity needs and whether the system can accommodate operational changes.
A conveyor should be assessed as part of the complete material-handling process, not as an isolated piece of equipment.
Conveyor System Maintenance Best Practices
Routine maintenance helps maintain safe operation and reduce unexpected interruptions.
Inspect belts, chains, rollers, and other moving components for wear or damage.
Check belt tracking, tension, alignment, and the condition of pulleys.
Examine motors, bearings, gearboxes, and drive components for unusual heat or noise.
Lubricate components according to the equipment manufacturer's instructions.
Keep sensors, guards, and emergency-stop devices in proper working condition.
Remove material buildup using appropriate cleaning procedures.
Record inspections, faults, repairs, and component replacements.
Isolate energy sources and follow approved safety procedures before maintenance work.
Maintenance frequency should reflect operating hours, material characteristics, environmental conditions, and manufacturer guidance.
Frequently Asked Questions
What are the main types of conveyor systems?
Common types include belt, roller, chain, screw, pneumatic, overhead, vibratory, and bucket elevator systems. Each type is designed for particular materials, transport routes, and operating conditions.
What factors determine conveyor system requirements?
The main factors include material properties, load capacity, throughput, conveyor speed, facility layout, operating environment, power needs, safety, and maintenance requirements.
Which conveyor system is used for bulk materials?
Belt conveyors are commonly used for many bulk materials, while screw conveyors, pneumatic systems, vibratory conveyors, and bucket elevators may be suitable for particular materials or transport routes. Selection depends on material properties and the process requirements.
Where are conveyor systems commonly used?
Conveyor systems are used in manufacturing, warehouses, distribution centers, food processing, pharmaceutical production, mining, agriculture, automotive assembly, packaging, and waste management.
Why is conveyor maintenance important?
Maintenance helps identify wear, alignment issues, mechanical faults, and safety problems. Planned inspections can improve reliability, reduce unplanned downtime, and support safe operation.
Can conveyor systems be automated?
Yes. Powered conveyors can be integrated with sensors, programmable controllers, variable-speed drives, and industrial software to coordinate product movement, sorting, and material flow.
Conclusion
Conveyor systems are important components of industrial material handling, supporting the movement of products and raw materials across manufacturing, warehousing, packaging, and processing operations. Different types—including belt, roller, chain, screw, pneumatic, overhead, vibratory, and bucket elevator systems—serve different transportation requirements.
Selecting a suitable conveyor requires an understanding of the material being moved, load capacity, throughput, facility layout, environmental conditions, power requirements, safety, and maintenance. A well-matched system can help maintain consistent material flow and support organized production processes, while an unsuitable design may create unnecessary costs, downtime, or operational difficulties.
By evaluating these requirements carefully and maintaining equipment according to its operating conditions, facilities can make informed decisions about conveyor system design, applications, and long-term performance.
