Introduction Window tinting is a practical way to manage sunlight, reduce glare, improve privacy, and protect interiors from ultraviolet (UV) radiation. It involves applying a thin film to glass surfaces, commonly on cars, homes, and commercial buildings. Although many people associate window tinting with darker car windows, modern films are available in several materials, shades, and performance levels. Choosing the right window tint depends on the intended application, local regulations, budget, and the conditions in which the glass is used. Some films primarily change the appearance of a window, while others are designed to reduce solar heat, limit UV exposure, or provide additional glass protection. Understanding the differences between dyed, metallic, carbon, ceramic, and other specialty films can help people make informed decisions. This guide explores their features, benefits, limitations, current developments, and maintenance requirements.
Understanding How Window Tinting Works
Window tinting film is generally made from thin layers of polyester or other specialized materials. It is applied to glass using an adhesive, creating a surface that changes how sunlight passes through the window.
Depending on its construction, a film may absorb, reflect, or selectively transmit different parts of sunlight. These include visible light, infrared radiation, and ultraviolet radiation.
Three important measurements help explain window film performance:
Visible Light Transmission (VLT): The percentage of visible light that passes through the film and glass. A lower VLT generally means a darker appearance.
Total Solar Energy Rejection (TSER): The percentage of total solar energy rejected by the film and glazing system.
UV rejection: The percentage of ultraviolet radiation blocked by the film.
These measurements describe different characteristics. A darker film does not automatically provide better heat rejection, and a film with high infrared rejection does not necessarily have the highest total solar energy rejection.
2. Different Types of Window Tinting
Window tinting films are available in several categories. Each type uses a different material or technology, which influences its appearance, performance, and typical cost.
2.1 Dyed Window Tint
Dyed window tint uses color pigments or dyes within the film to create a darker appearance. It is commonly considered an entry-level option for automotive applications.
The film absorbs some sunlight, helping reduce glare and limiting the amount of visible light entering the vehicle. It can also provide privacy by making it more difficult to see into the cabin during daylight.
Key features:
Dark appearance with a range of shade options.
Generally lower initial cost than advanced films.
Can reduce visible light and some glare.
Does not rely on a metallic layer.
Benefits: Dyed film can be suitable for people primarily interested in appearance, moderate glare reduction, and basic privacy. It is often available in different shades, allowing vehicle owners to choose an appearance that matches their preferences.
Limitations: Its heat rejection may be more limited than that of some advanced films. Depending on the product's quality and exposure to sunlight, some dyed films may fade or change color over time.
2.2 Metallized Window Tint
Metallized window tint incorporates tiny metallic particles or layers that reflect and help manage solar energy. These films can provide a reflective appearance and are designed to reduce some of the heat entering through glass.
Key features:
Metallic components that reflect solar energy.
Can reduce glare and solar heat.
Often has a slightly shiny or reflective finish.
May offer greater durability than basic dyed films.
Benefits: Metallized films can provide a combination of heat management, glare reduction, and privacy. Their reflective characteristics may be useful in locations that receive substantial direct sunlight.
Limitations: Metallic layers can interfere with certain electronic signals, depending on the film's construction and the equipment involved. Possible interference with GPS, mobile reception, or other wireless devices is an important consideration when selecting this type of film. The reflective finish may also not suit every vehicle or building.
2.3 Carbon Window Tint
Carbon window tint uses carbon-based particles or materials to help control sunlight. It is generally non-metallic and is available in a range of shades.
Carbon films are often considered by people seeking a balance between appearance, durability, and solar performance.
Key features:
Carbon-based construction.
Usually has a matte or charcoal appearance.
Does not use a traditional metallic layer.
Can provide UV protection and glare reduction, depending on the product.
Benefits: Carbon films may retain their appearance more consistently than lower-cost dyed films. Their non-metallic construction also avoids the signal interference associated with some metallic films.
Limitations: Performance differs considerably between manufacturers and product ranges. Some carbon films provide less heat rejection than advanced ceramic or multilayer films, so checking the technical specifications is important.
2.4 Ceramic Window Tint
Ceramic window tint uses advanced ceramic particles to manage selected parts of sunlight. It is commonly used in automotive applications where heat control and optical clarity are priorities.
Unlike traditional metallized films, ceramic films do not depend on a reflective metallic layer to achieve their performance.
Key features:
Ceramic-based technology.
Available in different shades, including relatively light options.
Can provide strong infrared heat rejection.
Non-metallic construction in many products.
Benefits: Ceramic film can reduce the feeling of solar heat while preserving a lighter appearance. It may also reduce glare and block a high percentage of UV radiation, depending on the product. Some ceramic films are designed to maintain good electronic signal compatibility.
Limitations: Ceramic films often have a higher initial cost than basic dyed options. Their performance varies by product, and the word "ceramic" alone does not guarantee a particular level of heat rejection or UV protection.
2.5 Crystalline and Multilayer Window Film
Crystalline films use specialized optical layers to selectively manage sunlight. Some products combine many extremely thin layers and ceramic-related technologies to reject heat while allowing substantial visible light to pass through.
For example, 3M's Crystalline automotive film range uses multilayer optical film technology and reports up to 64% total solar energy rejection for certain products. Actual results depend on the specific film and installation.
Key features:
Advanced multilayer construction.
Options designed to provide heat rejection without a very dark appearance.
Available in different VLT levels.
May combine strong solar performance with optical clarity.
Benefits: These films may suit drivers who want solar control without substantially changing the appearance of their vehicle windows. Their lighter shades can be useful when visibility is a priority.
Limitations: Specialty multilayer films can be more expensive than basic tint. It is also important to compare the exact performance data and product specifications rather than assuming all crystalline films perform identically.
3. Comparison of Common Window Tint Types
The following table provides a general comparison. These are broad characteristics, not guaranteed performance figures; individual products can vary.
Film type | Main characteristic | Potential benefits | Common limitations |
|---|---|---|---|
Dyed | Uses color pigments | Affordable, darker appearance, glare reduction | Heat rejection may be limited; some products may fade |
Metallized | Contains reflective metallic components | Solar reflection, glare reduction, durability | May interfere with electronic signals |
Carbon | Uses carbon-based materials | Stable appearance, non-metallic construction | Performance varies by product |
Ceramic | Uses ceramic particles | Heat control, UV protection, clarity | Usually costs more than basic films |
Crystalline | Uses specialized multilayer optics | Heat rejection with lighter appearance | Often a premium-priced option |
The appropriate choice depends on the desired balance between visible light, heat management, appearance, privacy, and cost.
4. Benefits and Limitations of Window Tinting
Window tinting can improve the experience of using a vehicle or indoor space, but its benefits depend on the film, glass, and installation.
Benefits
Reduced solar heat: Certain films reject or reflect a portion of incoming solar energy. This can help reduce heat buildup in vehicles and indoor spaces, although the amount of improvement varies with glazing, sunlight, and ventilation.
UV protection: Many window films block a high proportion of UV radiation. This can help reduce exposure to UV rays and slow fading of some interior materials. For instance, 3M reports UV protection of up to 99.9% for its Crystalline automotive film range.
Glare reduction: By reducing visible light transmission, window films can help limit glare from direct sunlight. The appropriate shade is important because excessive darkness can also reduce visibility.
Privacy and appearance: Darker or more reflective films can make it harder to see inside a vehicle or building under certain lighting conditions. The amount of privacy changes with the difference between indoor and outdoor light levels.
Interior protection: By limiting sunlight exposure, some films can help protect seats, dashboards, furnishings, and other interior surfaces from fading. They cannot prevent all forms of wear or discoloration.
Limitations
Some films can make it harder to see through windows at night, especially when the interior is dark.
Low-quality or incorrectly installed films may develop bubbles, peeling edges, discoloration, or optical distortion.
Metallic films can affect some wireless signals.
Certain film and glass combinations may require special compatibility checks.
Tinting does not eliminate the need for air conditioning, sunshades, or other heat-management measures.
Local regulations may restrict the darkness, reflectivity, or placement of automotive window films.
5. Latest Trends and Innovations in Window Tinting
Window film technology continues to develop, with manufacturers focusing on improved solar control, optical clarity, durability, and more specialized applications.
5.1 Advanced Ceramic Technology
Ceramic films are increasingly used in applications where heat rejection and visibility are both important. Some newer formulations target infrared wavelengths while allowing more visible light to pass through. This can provide solar control without requiring an especially dark film.
The performance of each product should be checked using its published technical data, particularly TSER, VLT, and infrared rejection.
5.2 Multilayer Optical Films
Multilayer films use multiple extremely thin layers to selectively manage sunlight. Their construction can support a combination of heat rejection and visible light transmission.
These films are particularly relevant to drivers who want a relatively clear appearance while reducing the impact of sunlight. 3M's Crystalline range is one example of this approach.
5.3 Smart and Switchable Glass Technologies
Smart glazing technologies can change their light transmission in response to an electrical signal or other control mechanism. Examples include electrochromic and suspended-particle-device systems.
Unlike conventional tint films, some smart glazing systems can adjust their appearance or transparency when activated. They are used in selected vehicles, buildings, and specialized installations. However, they are different from ordinary aftermarket window tint and may require dedicated glazing, wiring, and control systems.
5.4 Improved UV and Solar Control
Manufacturers continue to develop films that combine UV protection with heat management and glare reduction. Clear or lightly tinted options can be particularly relevant where maintaining a bright interior or unobstructed appearance is important.
When comparing products, it is useful to check whether the manufacturer publishes test results for the complete film and glazing system rather than relying on a single headline performance figure.
6. Key Features to Consider Before Choosing a Film
Selecting window tint involves more than choosing a shade. The following features can help narrow down the available options.
1. Visible Light Transmission: Consider how much daylight or visibility you want to retain. Lower VLT values indicate darker films, but the final appearance also depends on the original glass.
2. Heat rejection: If reducing solar heat is a priority, compare TSER values and other relevant test data. Infrared rejection alone does not represent all the solar energy entering through the window.
3. UV protection: Check the stated UV rejection percentage and the wavelength range used for testing. Products may use different testing methods.
4. Glare reduction: Consider the amount of direct sunlight entering the vehicle or room. A very dark film may reduce glare but can also affect visibility.
5. Signal compatibility: If the film will be used in a vehicle with GPS, mobile connectivity, or other electronic systems, ask whether the film is metallized and whether it is compatible with those devices.
6. Warranty and durability: Review the manufacturer's warranty, including what it covers and any exclusions. Ask about resistance to fading, peeling, bubbling, and discoloration.
7. Glass compatibility: Some films may not be suitable for certain types of glass, including specific insulated or coated glazing. For buildings, check with a qualified installer before applying film to the glass.
7. Well-Known Window Film Companies and Product Options
Several established manufacturers offer window films for vehicles and buildings. Their products differ in material, specifications, available shades, and regional availability.
Company | Example product range | General features |
|---|---|---|
3M | Crystalline, Ceramic IR, Color Stable | Options for heat control, UV protection, and different appearance preferences |
LLumar | IRX, CTX, dyed and metallized films | Offers ceramic, metallized, dyed, and clear automotive film options |
Eastman | LLumar and other performance film brands | Window film products for automotive and architectural applications |
3M's automotive range includes several film technologies, from conventional dyed and metallized products to advanced ceramic and Crystalline options. The manufacturer publishes product details and comparison information for its available ranges.
LLumar offers automotive tint options including ceramic, metallized, dyed, and clear films. Its product information describes differences in heat management, appearance, and UV protection.
For a fair comparison, review the technical specification sheet for the exact product and shade. Manufacturer claims are useful starting points, but performance figures should be compared using the same test methods and glass conditions.
8. How to Choose the Right Window Tint
The right film depends on where it will be installed and what the user wants it to achieve.
For vehicles
Drivers who primarily want a darker appearance and basic glare reduction may consider dyed films. Those who prioritize solar control and prefer a non-metallic option may compare carbon and ceramic films. People who want substantial heat management while keeping a lighter appearance may consider advanced ceramic or multilayer optical films.
For homes and commercial buildings
Architectural window films may be designed for solar control, glare reduction, privacy, UV protection, or safety and security. Their construction and performance requirements can differ from automotive products. Check the film's suitability for the specific glazing, particularly where insulated glass, coated windows, or unusual glass dimensions are involved.
A practical selection checklist
Before making a final choice, ask the installer to show samples under natural light. A film that appears light in a showroom may look different when applied to the vehicle's original glass.
9. Tips for Proper Installation and Maintenance
Proper installation and routine care can help preserve the appearance and performance of window tint.

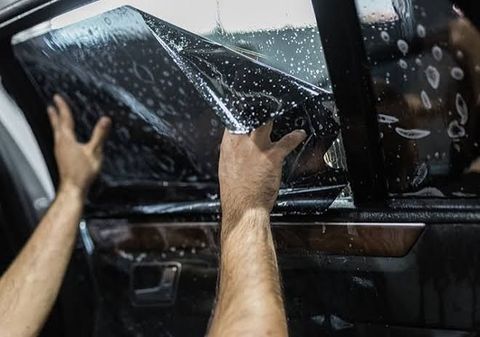

Installation tips
Choose an experienced installer familiar with the particular film and glass type.
Confirm the exact film brand, series, shade, and warranty before installation.
Ensure the glass is cleaned thoroughly before the film is applied.
Ask about the recommended curing time and any restrictions on operating windows.
Inspect the finished installation for visible bubbles, creases, scratches, and uneven edges.
Maintenance tips
Allow the film to cure: Newly installed automotive films may appear slightly hazy or contain small water pockets while the adhesive cures. Follow the installer's guidance before judging the final appearance.
Use gentle cleaning products: Clean tinted windows with a soft microfiber cloth and a film-compatible cleaner. Avoid abrasive pads and harsh chemicals that could damage the film.
Avoid sharp tools: Do not use blades or abrasive objects on the film surface. Take extra care when cleaning around window edges and seals.
Inspect the film periodically: Look for peeling, discoloration, scratches, or persistent bubbles. Contact the installer if defects develop, especially while the product is under warranty.
For building applications, follow the film manufacturer's specific cleaning and maintenance instructions, as architectural films may have different surface coatings and care requirements.
10. Frequently Asked Questions
1. Which type of window tint provides the most heat rejection?
Some advanced ceramic and multilayer optical films are designed for high heat rejection. However, results vary by product, shade, and glass type. Compare the published TSER and other relevant specifications instead of relying on the film category alone.
2. Does darker window tint always block more heat?
No. Darkness is mainly related to visible light transmission. Some light-colored ceramic and multilayer films can reject substantial solar energy without significantly darkening the glass. Check the product's technical data to understand its actual performance.
3. Can window tint interfere with GPS or mobile signals?
Some metallic films may interfere with certain electronic signals. Non-metallic films, including many ceramic and carbon options, are generally suitable when signal compatibility is a concern. Ask the installer about the specific film and devices involved.
4. How long does window tint last?
The lifespan depends on film quality, installation, exposure to sunlight, maintenance, and environmental conditions. Some products are supplied with long-term or lifetime limited warranties, but coverage varies by manufacturer and location. Check the warranty terms for the exact film being installed.
5. Can window tint be applied to existing factory-tinted glass?
In some cases, additional film can be installed over factory-tinted glass, but the result depends on the original glazing and the film's compatibility. The combined visible light transmission may also become too low for safe or legal use. Have a qualified installer assess the glass before proceeding.
6. Is window tinting legal everywhere?
No. Automotive tinting laws differ between countries and regions. Regulations may set limits on visible light transmission, reflectivity, and which windows can be tinted. In India, check the applicable current rules and local enforcement requirements before installing aftermarket film. Do not assume that a product's availability means its installation is legally permitted.
7. Can window tint be removed?
Yes. Many aftermarket films can be removed by a professional using suitable techniques. Removal can be more complicated if the film is old, damaged, or attached to delicate glass coatings or rear-window defroster lines. Professional removal can help reduce the risk of damage.
Conclusion
Window tinting offers several ways to manage sunlight, reduce glare, improve privacy, and protect interiors. The main film types—dyed, metallized, carbon, ceramic, and crystalline—differ in their materials, appearance, and solar-control characteristics. Each has benefits and limitations, so the most suitable option depends on the intended use and the performance requirements.
Before choosing a film, compare its visible light transmission, total solar energy rejection, UV protection, and compatibility with the glass. Consider installation quality, warranty coverage, and applicable regulations as well. A well-informed choice should balance comfort, visibility, durability, and practical requirements rather than focusing on darkness or a single advertised feature.
